Factory Direct Sales CNC Machine Lathes Ck6163 Horizontal Cnc Turning Machine

Factory Direct Sales CNC Machine Lathes Ck6163 Horizontal Cnc Turning Machine

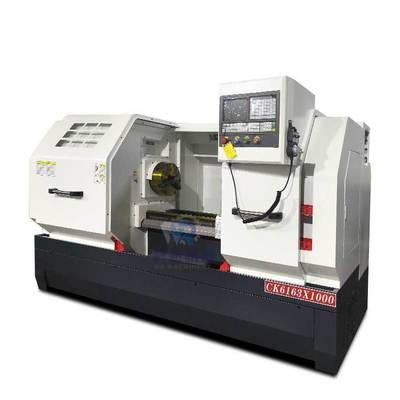

Factory Direct Sales CNC Machine Lathes Ck6163 Horizontal Cnc Turning Machine Factory Direct Sales CNC Machine Lathes Ck6163 Horizontal Cnc Turning Machine

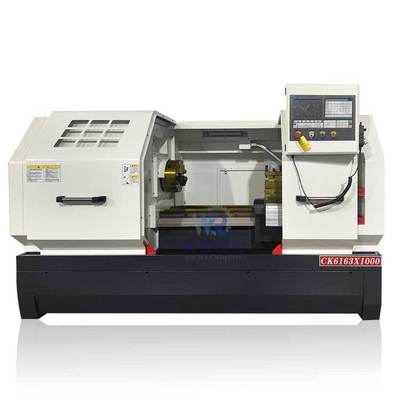

Großes Bild :  Factory Direct Sales CNC Machine Lathes Ck6163 Horizontal Cnc Turning Machine

Produktdetails:
Herkunftsort: CHINA
Markenname: HR
Zertifizierung: ceiso
Modellnummer: CK6163
Zahlung und Versand AGB:
Min Bestellmenge: 1Set
Preis: usd9000-15000
Verpackung Informationen: Standardpaket für den Export (Kombinationskoffer)
Lieferzeit: 30 Tage
Zahlungsbedingungen: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit: 40 Stück/Monat
Kontakt

Factory Direct Sales CNC Machine Lathes Ck6163 Horizontal Cnc Turning Machine

Beschreibung
Stromspannung: 380V Automatische Note: Automatisch
Macht (w): 11 kW Zustand: Neu
CNC oder nicht: CNC Typ: horizontal
Garantie: 1 Jahr Spindelbohrung: 105 mm
Hervorheben:

factory direct CNC lathe machine

,

horizontal CNC turning machine

,

CK6163 CNC lathe machine

Factory Direct Sales CNC Machine Lathes Ck6163 Horizontal Cnc Turning Machine
Product Introduction
1.The dimension of spindle box is superior to that of common type, and the overall rigidity is strong.
2. Ground-type bed with small geometric deformation in integral casting.
3. The main motor adopts frequency conversion motor, and the torsion is suitable for powerful turning.
4. Widening and Thickening Overtime, Choosing National standard Heavy Tool Frame.
5. Large modulus gears and standard three-axle three-gear are used in the spindle box.
Factory Direct Sales CNC Machine Lathes Ck6163 Horizontal Cnc Turning Machine 0

Specification
ck0640
ck6130
ck6132
ck6432
ck6136
CK6140
Max. swing dia. over bed
Φ300mm
Φ300mm
Φ360mm
Φ360mm
Φ360mm
Φ400mm
Max. swing dia. over cross slide
φ130mm
100mm
150mm
Φ150mm
Φ190mm
Φ225mm
Max. processing length
240mm
400mm
450mm
450/700mm
750/1000mm
750/1000mm
Spindle bore
Φ42mm
48mm
40mm
Φ60mm
Φ60mm
Φ60mm
Spindle speed
50~2500rpm
150-2500mm
150-2500mm
150-2500mm
150-2500rpm
150-2500rpm
X/Z axis fast feeding speed
6/8 M/MIN
8/10 M/MIN
6/8 M/MIN
8/10 M/MIN
6/8 m/min
6/8 M/MIN
X/Z axis position accuracy
0.01/0.015mm
X/Z-axis repeatability
0.012/0.013mm
clamping
Pneumatic collet
3 Jaw Manual Chuck
tool post type
gang-type tool holder
4 station electric tool holder
Main motor power
3KW
4kw
4kw
4kw
4/5.5KW
5.5KW
Tailstock taper

MT4
MT3
MT4
MT4
MT4
Tailstock sleeve dia.
/
60mm
60mm
60mm
60mm
?
Tailstock sleeve travel
/
100mm
100mm
100
120mm
Overall dimensions(L×W×H)
1550×920×1450
1750*1200*1570
1820×1100×1550
1660/1940×1400×1700
1850/2120/2370/x1400x1700mm
2120/2370×1400×1700mm
Net weight
850 kg
1220kg
1200kg
1250/1450kg
1500/1650/1750
1800/1950
Item
CK6150A
ck6150B
CK6163
CK6180
CK61100
CK61125
Max. swing dia. over bed
Φ500mm
Φ500mm
φ630mm
φ800mm
Φ1100mm
Φ1250mm
Max. swing dia. over cross slide
Φ280mm
Φ280mm
φ350mm
φ500mm
Φ820mm
Φ900mm
Processing length
750/1000/1500/2000mm
1000/1500/2000/3000mm
1500/2000/3000/5000mm
Dia. of spindle
Φ82mm
φ105mm
φ105mm
Spindle speed step
step-less
Three gear speed manual change,frequency conversion stepless
Four gears No grade to
change frequency
Four gears No grade
to change frequency
Spindle speed
14-1500 rpm
30-150,100-500,
320-1100rpm
30-84/53-150/125-350/300-835
30-84/53-150/125-350/300-835rpm
Taper of spindle bore
1:20/Φ90
(Metric)120 1:20
Tool holder
4 station electric tool post
Tool bar section
25X25mm
30×30mm
40×40mm
Main motor power
7.5KW
11KW
11KW
X/Z axis position accuracy
0.02/0.025mm
±0.006mm
±0.006mm
X/Z-axis repeatability
0.01/0.012mm
±0.007mm
X:0.008 mm
X/Z axis fast feeding speed
8/10 M/MIN
4/5 M/MIN
4/6 M/MIN
Tailstock sleeve travel
150mm
250mm
300mm
Tailstock taper
MT5
MT6
MT8
Dimension
2410/2660/3160×1560×1730mm
3200/3700/4200/5200
×1820×1710mm
3300/3800/4300 × 1940 × 1800mm
2800/3700/4200/5200/6200/7200*1820*1780
Net weight(kg)
2800/3200/3500
3900/4300/4800
4100/4500
4300/4700/5500/6500
4500/5000/5500/6000/6500
Details Images
Factory Direct Sales CNC Machine Lathes Ck6163 Horizontal Cnc Turning Machine 1
The base of the turning machine cnc lathe frame hobby mini lathe is wide, the structure of the bed rail is reasonable, and the cooling structure design of the bedside box can effectively improve the stability of the machine tool and the stability of the spindle. The guide rail is made of wear-resistant cast iron, quenched and refined by super audio to ensure the long-term stability and service life of the machine tool X-axis with four-point line / Z-axis screw with a central three-point structure design to ensure that the rail in the work more stable and unaffected by the side force Z guide rails with a fully enclosed design, the work of the machine can better protect the rails.
Packing&Shipping
1.Port: Qingdao port or Shanghai port
2.Payment method: T/T, L/C, D/P, D/D etc.
3.Payment: 30% T/T as deposit, 70% balance shall be paid before shipment.
4.Delivery time: 30 days after receive the 30%T/T deposit.
5.Non-fumigation packaging, we use seaworthy plywood.
6. Steel base plate, it is stronger 3-5 times than normal plywood base plate.
7.Water-proof and damp proof, water resistant film wraped all the machine.
8.Fully sheathed case,prevention of collision and keep the goods intact.
Factory Direct Sales CNC Machine Lathes Ck6163 Horizontal Cnc Turning Machine 2
