High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine

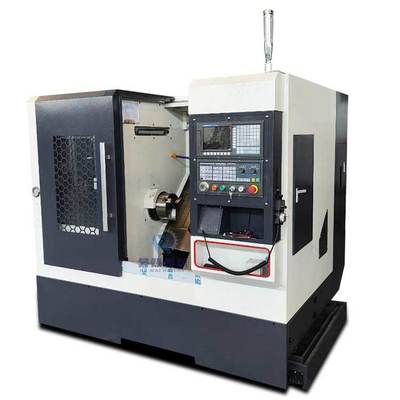

Großes Bild : High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine

Produktdetails:

Herkunftsort:	CHINA
Markenname:	HR
Zertifizierung:	ceiso
Modellnummer:	TCK40

Zahlung und Versand AGB:

Min Bestellmenge:	1Set
Preis:	usd12000-15000
Verpackung Informationen:	Standardpaket für den Export (Kombinationskoffer)
Lieferzeit:	30 Tage
Zahlungsbedingungen:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	40 Stück/Monat

Kontakt

High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine

Beschreibung

Stromspannung:	380V	Automatische Note:	Automatisch
Macht (w):	5.5/7.5kw	Zustand:	Neu
Max. Schwungdurchmesser:	450 mm	Gewicht:	1700 kg
CNC oder nicht:	CNC	Typ:	horizontal
Hervorheben:	TCK40 CNC lathe machine , horizontal slant bed lathe , CNC turning machine with warranty

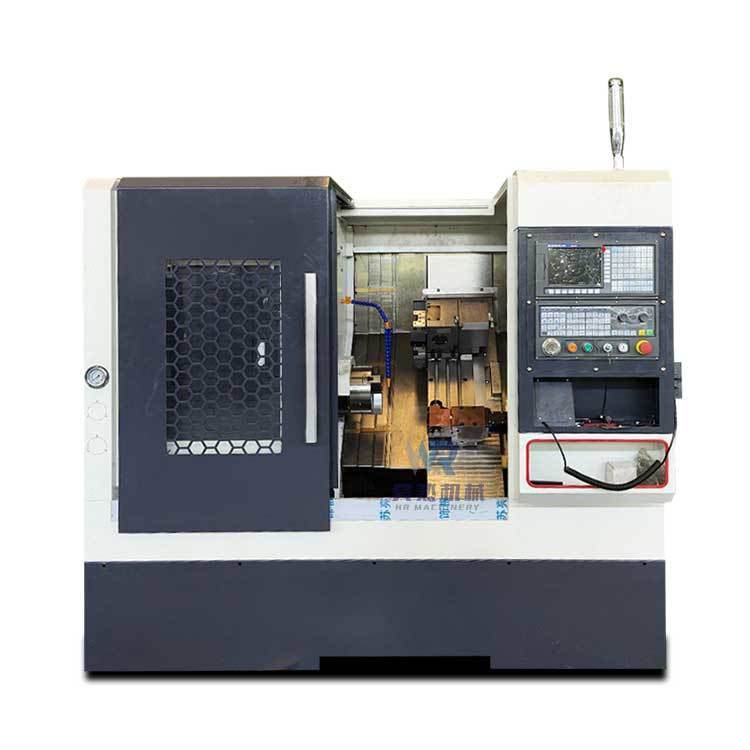

High Quality TCK40 CNC Lathe Horizontal Slant Bed Lathe CNC Turning Machine

Product Introduction

slant bed cnc turning center lathe machine The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention. Optimized design of the headstock, suitable for turning of disc and shaft parts. It can process straight, arc, metric and inch threads, and multi-threaded. It is suitable for turning discs and shafts with complex shapes and high precision requirements. Parts Processing.



model	tCK40
Max swing over bed Dia.(mm)	Φ450
Maximum cutting diameter(mm)	Φ120
Max cutting length(mm)	335
X axis travel(mm)	900
Z axis travel(mm)	335
X, axis feed speed(mm/min)	24000
Z axis feed speed(mm/min)	24000
handwheel(mm)	0.001/0.01/0.1
X, Z feed speed(mm/min)	0~5000
X, Z manual feed speed(mm/min)	0~1260
Xaxis repeated positioning accuracy(mm)	0.005
X axis positioning accuracy(mm)	0.01
Z axis repeated positioning accuracy(mm)	0.006
Z axis positioning accuracy(mm)	0.015
Spindle speed(rpm)	35-3000
Spindle maximum torque(N.m)	35
Spindle nose	A2-5(OptionalA2-6)
Spindle bore Dia(mm)	Φ52
Hydraulic chuck through hole diameter(mm)	Φ40
Chuck	6”(Optional8”)
No.of tool holder	3 tool rack
Tool change time(s)	0.25
Tools size(mm)	20×20
Boring tool size(mm)	Φ25
Main motor(kw)	5.5 (4500rpm)
Main motor torque(N.m)	35
X-axis feed motor power(kw)	1.5
X-axis feed motor torque(N.m)	6
Z-axis feed motor power(kw)	1.5
Z-axis feed motor torque(N.m)	6
coolant capacity(L)	200
Motor type(1HP)(kw)	0.125
Machine weight(kg)	1600

Details Images

Hydraulic chuck Standard with 8inch hydraulic chuck +soft jaws Optional: 10inch hydraulic chuck

fly -cutter ,tool rack

45 Degree Machine structure 1. Special structure more stronger 2. Heavy loading capacity 3.Easy metal chips falling down

CNC System Standard: Siemens cnc system Optional: GSK , FANUC ,Syntec Etc.
